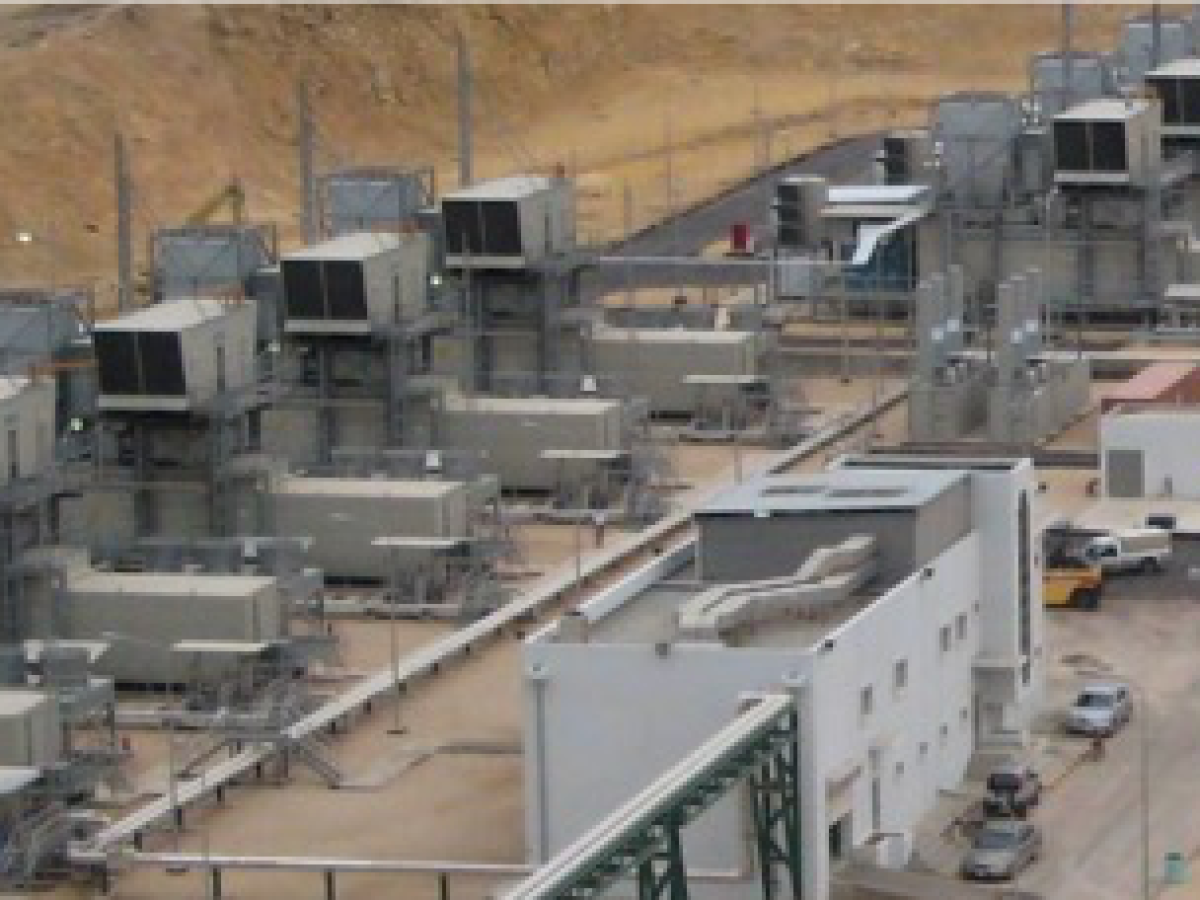

Simple cycle 9x SIEMENS SGT600 gas turbines power plant
-
Installed Capacity: 220,5 MW (50Hz)
-
Plant condition: used
-
Commissioning: Phase I - 2007 - 5 units Phase II - 2012 - 4 units
-
Configuration: 9 SIEMENS SGT600 Gas turbines generator set
-
Speed: 1500 rpm
-
Generator output: 11 kV
The Power Plant at a glance:
- Gas Turbine Power Plant operated predominately on natural gas with standby diesel fuel and shut-down in 2021.
Can be converted to alternative fuels as heavy fuel oil . Depends on the demand and needs of the customer.
- Project Phase I (5 units commissioned in 2007)
- Project Phase II (4 units commissioned in 2012)
- Easy shifting and relocation to any other location,
- Routine preventive maintenance carried out for all units under OEM supervision,
- Speed 1,500 rpm, Generator Output 11 kV, Frequency 50 Hz
- Emission ISO Standard at 15% O₂
- Original Dry Low NOX ( DLE ) Combustion Chambers
- Inertial Filtration and Single Stage F9
Downloads:
Download PRIOS - 220,5MW - 9x24,5 SIEMENS_SGT600.pdf
Disclaimer: Although the statements and technical information contained herein are believed to be materially accurate as of the date hereof, no representation or warranty is given as to the accuracy of any of the information provided.
